XML

XML is a flexible, text-based format used for structuring and storing data, commonly used in web services and data exchange between systems.

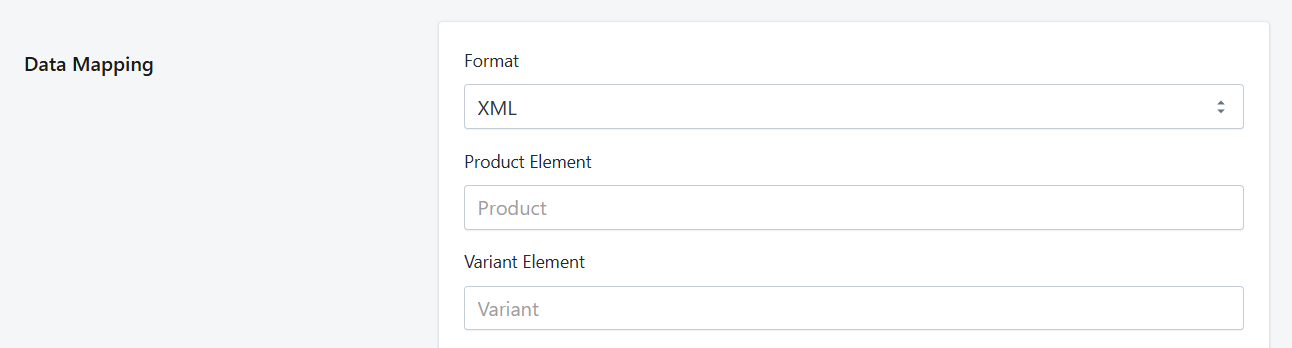

XML settings

Product Element

The key information required by Stockeo is the node name that contains the data for a single product.

<Products>
    <Product>
        <Code>0260</Code>
        <Title>Sitting Jazz Band Saxophonist</Title>
        <Price>13.73</Price>
        <RRP>32.95</RRP>
        <AvailableStock>181</AvailableStock>
        <Barcode>5050140026007</Barcode>
        <Description>A sitting jazz man, playing the saxophone.</Description>
        <Image>https://www.hill-interiors.com/images/giant/0260.jpg</Image>
    </Product>
    <Product>
        <Code>0261</Code>
        <Title>Sitting Jazz Band Trumpeter</Title>
        <Price>13.73</Price>
        <RRP>32.95</RRP>
        <AvailableStock>162</AvailableStock>
        <Barcode>5050140026106</Barcode>
        <Description>Bring timeless musical elegance to any setting with the Sitting Jazz Band
            Trumpeter.</Description>
        <Image1>https://www.hill-interiors.com/images/giant/0261.jpg</Image>
    </Product>
</Products>

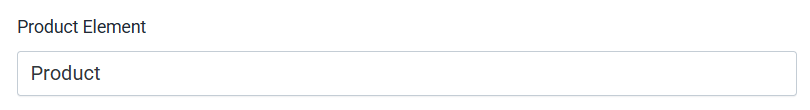

In such a case above enter Product in the Product Element field.

Product Element

Fields associated with the product are relative to the node used as Product Element:

• Title

• Description

• Image URL

• Product Type

• Tag

• Vendor

• Product Metafield

Variant Element

Fill in this field only when variants are nested in the product node.

If variants are in separate nodes at the product level and have a node with the same value for all variants of a specific product like product name, parent SKU, or parent ID, leave this field empty. For more information navigate to Variants.

<Products>
    <Product>
        <Code>0260</Code>
        <Title>Sitting Jazz Band Saxophonist</Title>
        <Description>A sitting jazz man, playing the saxophone.</Description>
        <Image>https://www.hill-interiors.com/images/giant/0260.jpg</Image>
        <Variants>
            <Variant>
                <VariantCode>0260S</VariantCode>
                <Price>13.73</Price>
                <RRP>32.95</RRP>
                <AvailableStock>181</AvailableStock>
                <Barcode>5050140026007</Barcode>
                <Option>Small</Option>
            </Variant>
            <Variant>
                <VariantCode>0260M</VariantCode>
                <Price>20.59</Price>
                <RRP>32.95</RRP>
                <AvailableStock>56</AvailableStock>
                <Barcode>5050140026008</Barcode>
                <Option>Medium</Option>
            </Variant>
            <Variant>
                <VariantCode>0260L</VariantCode>
                <Price>30.89</Price>
                <RRP>32.95</RRP>
                <AvailableStock>74</AvailableStock>
                <Barcode>5050140026009</Barcode>
                <Option>Large</Option>
            </Variant>
        </Variants>
    </Product>
</Products>

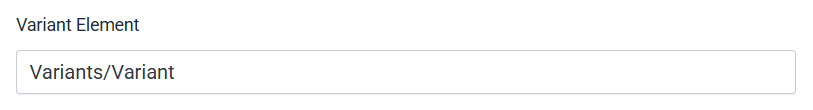

In such a case above enter Variants/Variant in the Variant Element field.

Variant Element

Fields associated with the variant are relative to the node used as Variant Element:

• SKU

• Barcode

• Compare at price

• Continue selling when out of stock

• Charge tax

• Cost per item

• Market Price

• Price

• Quantity

• Weight

• Variant Metafield

• Option

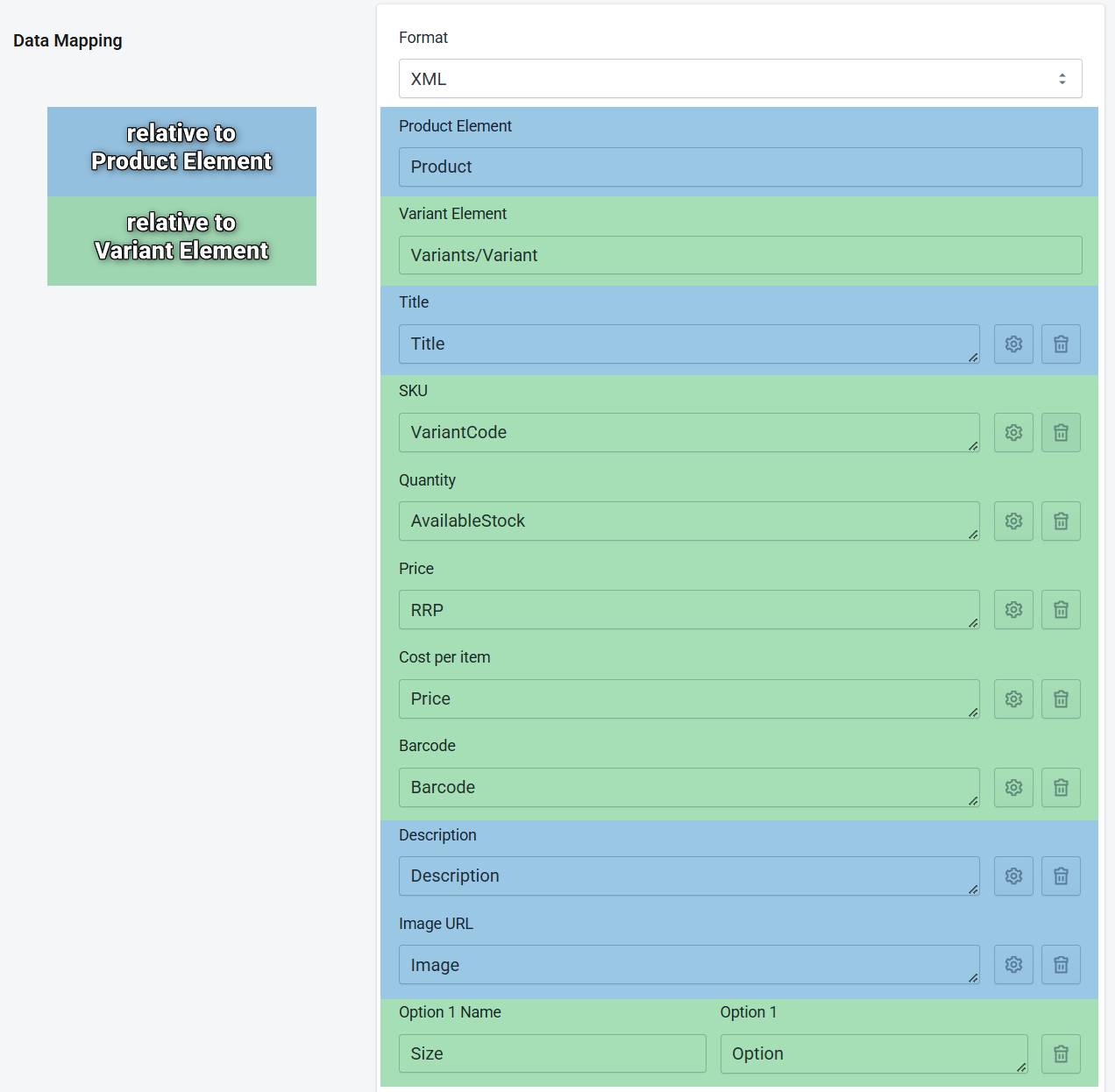

An example feed mapping, where variant nodes are embedded within product nodes, may look as follows:

Data Mapping section with Variant Element

Basic Data Mapping

In most XML feeds the data you need is stored as text inside nodes, and mapping it is straightforward - just enter the node name or the path to a nested node.

The examples below use the following XML feed:

<Product id="3378">
  <SKU>WC-1001</SKU>
  <Title>Wooden Clock With Nickel Details</Title>
  <Category>Clocks</Category>
  <Price currency="EUR">29.99</Price>
  <Stock>443</Stock>
  <Images>
    <Image>https://example.com/images/wc-1001-front.jpg</Image>
    <Image>https://example.com/images/wc-1001-side.jpg</Image>
  </Images>
</Product>

In this example the Product Element is Product.

Node name

To get the text content of a child node, enter the node name. For example, to get the product title:

Title

Path to a nested node

Use a slash (/) to navigate deeper. For example, to reach the first image inside Images > Image:

Images/Image

Pick a specific item from a list with [index]

When a node appears multiple times (like several <Image> nodes), you can pick a specific one by its position. The numbering starts at 1.

For example, to get the second image:

Images/Image[2]

Read an attribute with @

Some feeds store data in XML attributes rather than as text content. To read an attribute, type the @ sign followed by the attribute name.

For an attribute on the product node itself (e.g. if <Product id="3378">):

@id

For an attribute on a nested node, combine the path with @. For example, to get the currency attribute from the <Price> node:

Price/@currency

You can also combine a path, an index, and an attribute. For example, if images were stored as <Image url="..."/>, you would get the URL of the second image like this:

Images/Image[2]/@url

XML namespaces (prefixes like xml:, iaiext:, etc.) are automatically stripped by Stockeo. When referencing attributes, use the name without the prefix. For example, xml:lang becomes just lang.

Reading data from Variant Element attributes and values

In some cases, values need to be retrieved directly from a variant element's attribute or its node value.

<products>
  <product product_id="2001">
    <prices>
      <price currency="PLN" retail_price="299.99" wholesale_price="249.99" />
      <price currency="EUR" retail_price="69.99" wholesale_price="58.99" />
    </prices>
    <variants>
      <variant v_id="501" sku="TSHIRT-BLK-S" ean="5901234560011">15</variant>
      <variant v_id="502" sku="TSHIRT-BLK-M" ean="5901234560028">20</variant>
      <variant v_id="503" sku="TSHIRT-BLK-L" ean="5901234560035">12</variant>
      <variant v_id="504" sku="TSHIRT-BLK-XL" ean="5901234560042">8</variant>
      <variant v_id="505" sku="TSHIRT-BLK-XXL" ean="5901234560059">5</variant>
      <variant v_id="506" sku="TSHIRT-BLK-XXXL" ean="5901234560066">2</variant>
    </variants>
  </product>
</products>

To read an attribute from a variant element, use a Liquid formula with the _attributes object and specify the attribute name.

{{ _attributes.sku }}

To read the value of the variant element node itself, use value in the mapping field or in Liquid.

{{ value }}

A sample mapping for this type of XML is shown below:

Data mapping example using Variant Element attributes and values

Advanced Data Mapping with Liquid

For anything beyond the expressions above — such as picking a node by the value of its attribute — use a Liquid template.

Selecting a node by attribute value (e.g. "get the name where language is English") is not supported with simple expressions. Use Liquid instead as shown below.

Consider the following XML where the product title is available in multiple languages:

<product id="3378" currency="EUR" code_on_card="01269" type="regular" vat="23.0">
  <names>
    <name lang="eng"><![CDATA[Wooden Clock With Nickel Details]]></name>
    <name lang="hun"><![CDATA[Fa óra nikkel részletekkel]]></name>
    <name lang="pol"><![CDATA[Drewniany zegar z niklowymi dodatkami]]></name>
  </names>
  <stock quantity="443" available_stock_quantity="443"/>
  <images>
    <large>
      <image priority="1" url="https://example.com/images/3378-1.jpg"/>
      <image priority="2" url="https://example.com/images/3378-2.jpg"/>
    </large>
  </images>
</product>

Select a node by attribute value

To extract the product title from the <Name> node where the language is eng, use the where filter:

Stockeo setting

Select node with a specific attribute in the Stockeo automation

Copy this setting

Select an image by attribute value

To pull the URL of the image with priority="1":

Copy this setting

{{ images.large.image | where: "_attributes.priority", "1" | map: "_attributes" | map: "url" | first }}

And for the second image (priority="2"):

Copy this setting

{{ images.large.image | where: "_attributes.priority", "2" | map: "_attributes" | map: "url" | first }}
